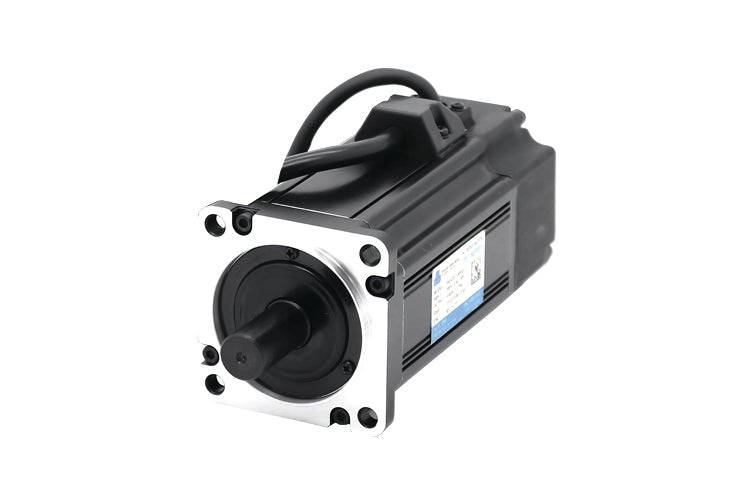

DST 0.4kW AC Servo Motor

DST 0.4kW AC Servo Motor

$180.00
(usd)

Description

0.40kW Low Inertia AC Servo Motor. Voltage class should be selected as 60V version for pair with DYN2 servo drive, or 200V version for pair with DYN4 servo drive.

Please contact us for non-standard inventory options, including holding brake, oil seal, or custom options.

Model# 640-DST-A6 _ _ 1

Documentation
DHT/DST Series AC Servomotor
Motor Specification
Servo Motor Model 640-DST-A6 _ _ 1
Rated Output 0.4kW
Rated Voltage 60V 200V
Applicable Servo Drive DYN2 DYN4
Rated Torque 1.27Nm
Instantaneous Max. Torque 3.82Nm
Rated Current 8.4A 2.8A
Max. Current 21.0A 8.5A
Rated Speed 3000rpm
Max. Speed 5000rpm
Rotor Inertia 0.426kg-cm^2
Torque Coefficient 0.181N∙m/A 0.455N∙m/A
Encoder 16-bit Absolute [ ABS-16-01 ]
Mass 1.65kg
Ratings Time Rating: Continuous
Thermal Class: F
Excitation Method: Permanent Magnet
Insulation Resistance: DC500V, >20MΩ
Noise: ≤60dB; No Special Noise
Environment Ambient Temperature: 0~40 °C
Storage: -20~50°C
Ambient Humidity: 20~80%
No Condensation
Enclosure IP65
Shock 98m/s2 Max. (10G)
