4 Axis 0.75kW DYN2 AC Servo CNC System
Description
DMM Technology's CNC package is the comprehensive solution to new builds, repairs or retrofits. Suitable for a variety of multi-axis machine types, the DYN2 servo system's precision and response guarantees the highest overall performance. All components are play for fastest installation and set up. The package is compatible with a variety of CNC controllers for highest system versatility.
Save 5% on total component cost when you purchase the CNC package!
Documentation and Media
| CNC Package Set Up Instructions - Video |
Package Specification

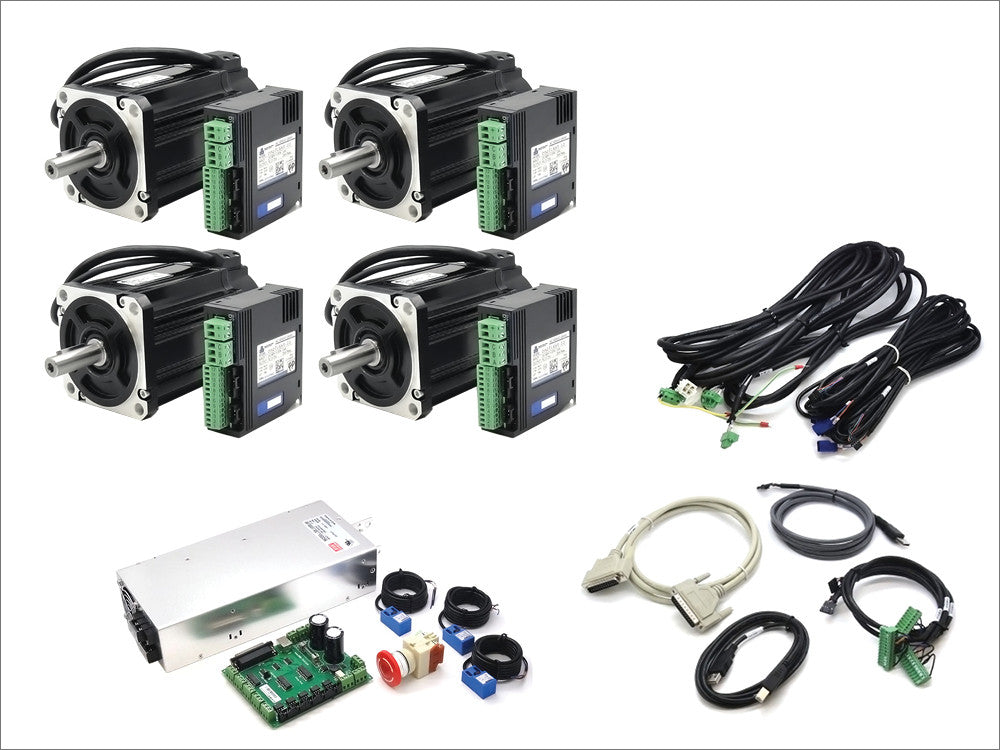

This package includes the following components. Please refer to the individual components pages for details. The servo drive software is a free download from our website here.
| Part Number | Description | Quantity |
|---|---|---|
| DYN2-TLA6S-00 | DYN2-TLA6S-00 AC Servo Drive | 4 |
| 86M-DHT-A6MK1 | 86mm Frame, 0.75kW, With Key | 4 |
| DMB4250-8B | Breakout Board | 1 |
| S-1K0-48 | DC Power Supply Input: 110~240VAC 17A Output: 48VDC 20.8A | 1 |
| CAEN-LH3-TSP | 3m DYN2 Encoder Cable | 4 |
| CAMP-LH3-SSP | 3m DYN2 Motor Power Cable | 4 |
| CA-25DBM-6A | 6ft DB25 Parallel Port Breakout Board to PC | 1 |
| CA-DMUS-6AB | 6ft USB Type A to Type B Breakout Board to PC | 1 |
| CA-MO512-2H | 2ft Breakout Board to DYN2 Servo Drive | 4 |
| HW-04-NPS | Inductive Proximity - 5mm, Non Contact, LED Indicated | 3 |
| HE-04-RMS | E-Stop Switch | 1 |
| CA-MTUSB-FR1 | DYN servo drive USB tuning cable | 1 |
