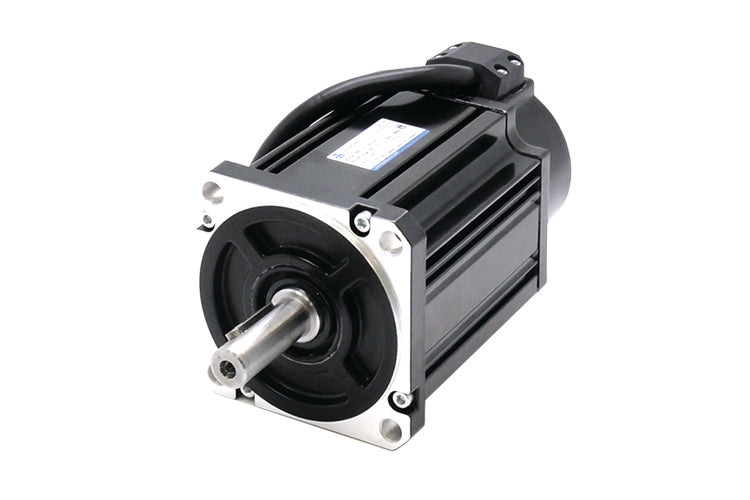

86L-DHT-A6TD1 0.25kW AC Servo Motor
86L-DHT-A6TD1 0.25kW AC Servo Motor
Regular price
$153.00 USD
Regular price
Sale price
$153.00 USD
Unit price
per
Couldn't load pickup availability
Description

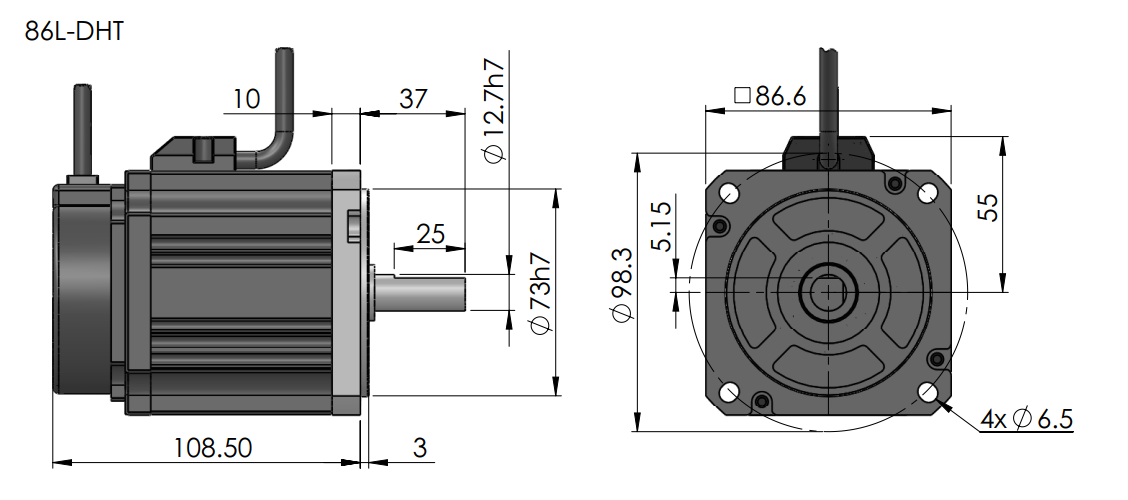

0.25kW Medium Inertia AC Servo Motor. Standard NEMA34 mount. 1/2" shaft with two flats.
Please contact us for non-standard inventory options including oil seal, or custom options.
Documentation
| DHT/DST Series AC Servomotor |
Motor Specification
| Servo Motor Model | 86N-DHT-A6MK1 |
|---|---|
| Rated Output | 0.25kW |
| Rated Voltage | 60V |
| Applicable Servo Drive |
DYN2-TL DYN4-L01 (110/120VAC Input) |
| Rated Torque | 0.8Nm |
| Instantaneous Max. Torque | 2.4Nm |
| Rated Current | 6.25A |
| Max. Current | 19.8A |
| Rated Speed |
3000rpm |
| Max. Speed |
5000rpm |
| Rotor Inertia | 0.65kg-cm^2 |
| Torque Coefficient | 0.121N∙m/A |
| Encoder | 16-bit Absolute [ ABS-16-01 ] |
| Mass | 1.9kg |
| Ratings | Time Rating: Continuous Excitation Method: Permanent Magnet Noise: ≤60dB; No Special Noise |
| Environment | Ambient Temperature: 0~40 °C Storage: -20~50°C Ambient Humidity: 20~80% No Condensation |
| Enclosure | IP65 |
| Shock | 98m/s2 Max. (10G) |
