86N-DHT 0.75kW AC Servo Motor
86N-DHT 0.75kW AC Servo Motor
Regular price
$292.00 USD
Regular price
Sale price
$292.00 USD
Unit price
per
Couldn't load pickup availability
Description

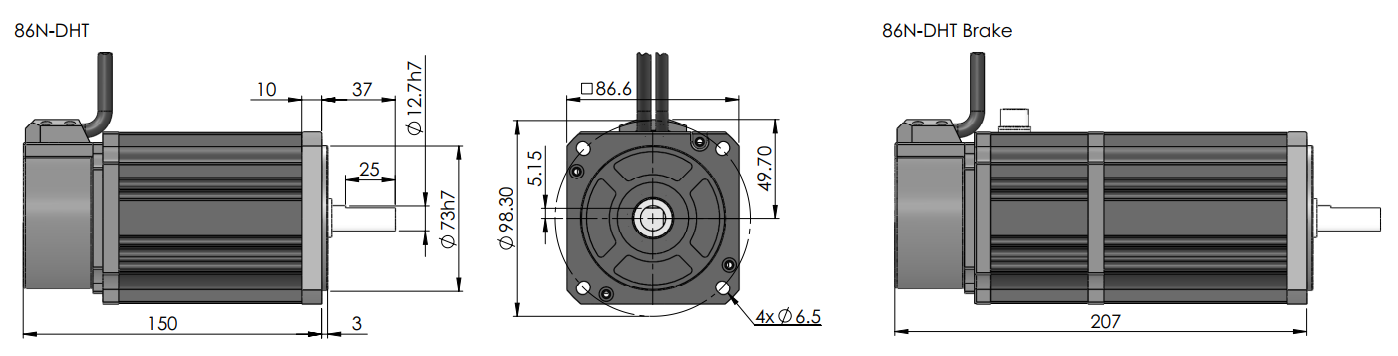

0.75kW Medium Inertia AC Servo Motor. Standard NEMA34 mount. 1/2" shaft.
Please contact us for non-standard inventory options including oil seal, or custom options.
Documentation
| DHT/DST Series AC Servomotor |
Motor Specification
| Servo Motor Model | 86N-DHT-A6MD1 |
|---|---|
| Rated Output | 0.75kW |
| Rated Voltage | 150V |
| Applicable Servo Drive | DYN2 / DYN4 |
| Rated Torque | 2.4Nm |
| Instantaneous Max. Torque | 7.1Nm |
| Rated Current | 7.2A |
| Max. Current | 21.5A |
| Rated Speed *1 | 3000rpm |
| Max. Speed *1 | 5000rpm |
| Rotor Inertia | 2.45kg-cm^2 |
| Torque Coefficient | 0.33N∙m/A |
| Encoder | 16-bit Absolute [ ABS-16-01 ] |
| Mass | 3.1kg |
| Ratings | Time Rating: Continuous Excitation Method: Permanent Magnet Noise: ≤60dB; No Special Noise |
| Environment | Ambient Temperature: 0~40 °C Storage: -20~50°C Ambient Humidity: 20~80% No Condensation |
| Enclosure | IP65 |
| Shock | 98m/s2 Max. (10G) |
Notes: 1. The DHT 0.75kW motor can either be paired with the DYN2 or DYN4 servo drive. Paired with the DYN2 servo drive, the rated and peak speed depends on the servo drive voltage input.
