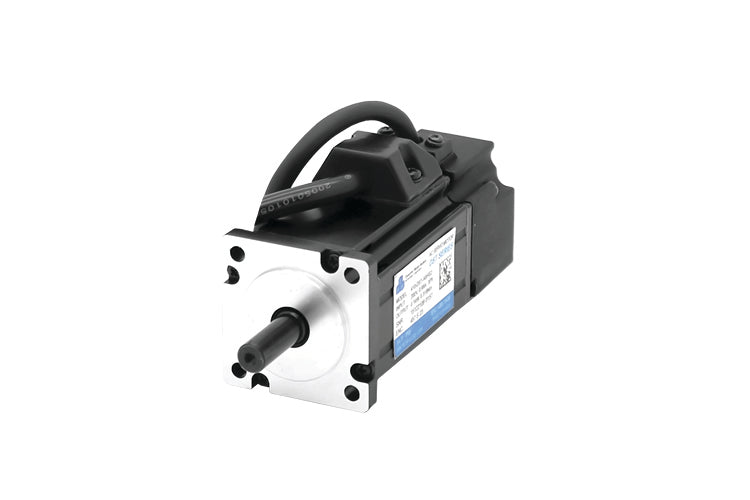

DST 0.05kW AC Servo Motor
DST 0.05kW AC Servo Motor
Regular price
$215.00 USD
Regular price
Sale price
$215.00 USD
Unit price
per
Couldn't load pickup availability
Description
0.05kW Low Inertia AC Servo Motor. Voltage class should be selected as 60V version for pair with DYN2 servo drive, or 200V version for pair with DYN4 servo drive.
Please contact us for non-standard inventory options, including oil seal, or custom options.
Model# 405-DST-A6 _ _ 1
Documentation
| DHT/DST Series AC Servomotor |
Motor Specification
| Servo Motor Model | 405-DST-A6 _ _ 1 | |
|---|---|---|
| Rated Output | 0.05kW | |
| Rated Voltage | 60V | 200V |
|
Applicable Servo Drive |
DYN2-T1 | DYN4-L01 |
| Rated Torque | 0.16Nm | |
| Instantaneous Max. Torque | 0.48Nm | |
| Rated Current | 2.0A | 0.8A |
| Max. Current | 6.0A | 2.4A |
| Rated Speed | 3000rpm | |
| Max. Speed | 5000rpm | |
| Rotor Inertia | 0.036kg-cm^2 | |
| Torque Coefficient | 0.08N∙m/A | 0.225N∙m/A |
| Encoder | 16-bit Absolute [ ABS-16-01 ] | |
| Mass | 0.47kg | |
| Ratings | Time Rating: Continuous Thermal Class: F Excitation Method: Permanent Magnet Insulation Resistance: DC500V, >20MΩ Noise: ≤60dB; No Special Noise |
|
| Environment | Ambient Temperature: 0~40 °C Storage: -20~50°C Ambient Humidity: 20~80% No Condensation |
|
| Enclosure | IP65 | |
| Shock | 98m/s2 Max. (10G) | |
