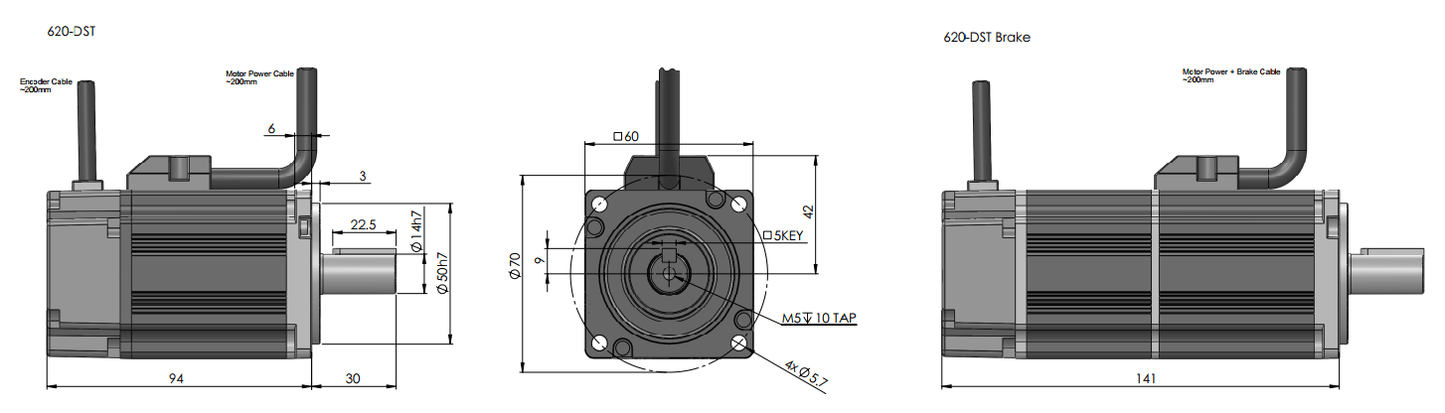

DST 0.2kW AC Servo Motor

DST 0.2kW AC Servo Motor

$137.00
(usd)

Description

0.20kW Low Inertia AC Servo Motor. Voltage class should be selected as 60V version for pair with DYN2 servo drive, or 200V version for pair with DYN4 servo drive.

Please contact us for non-standard inventory options, including oil seal, or custom options.

Documentation:
DHT/DST Series AC Servomotor
Motor Specification
Servo Motor Model 620-DST-A6 _ _ 1
Rated Output 0.2kW
Rated Voltage 60V 200V
Applicable Servo Drive DYN2 DYN4
Rated Torque 0.637Nm
Instantaneous Max. Torque 1.91Nm
Rated Current 4.5A 2.1A
Max. Current 11.3A 6.5A
Rated Speed 3000rpm
Max. Speed 5000rpm
Rotor Inertia 0.232kg-cm^2
Torque Coefficient 0.169N∙m/A 0.312N∙m/A
Encoder 16-bit Absolute [ ABS-16-01 ]
Mass 1.0kg
Ratings Time Rating: Continuous
Thermal Class: F
Excitation Method: Permanent Magnet
Insulation Resistance: DC500V, >20MΩ
Noise: ≤60dB; No Special Noise
Environment Ambient Temperature: 0~40 °C
Storage: -20~50°C
Ambient Humidity: 20~80%
No Condensation
Enclosure IP65
Shock 98m/s2 Max. (10G)
